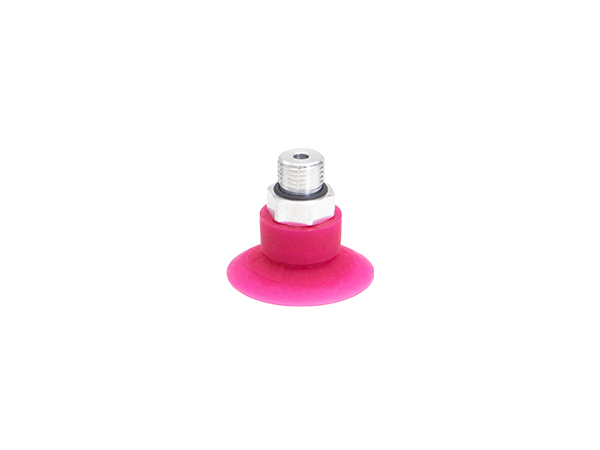

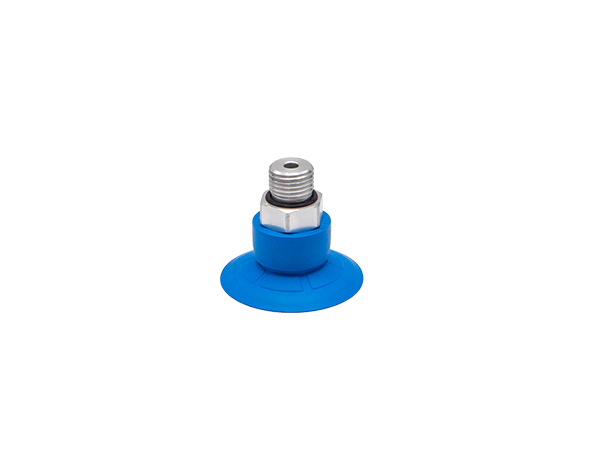

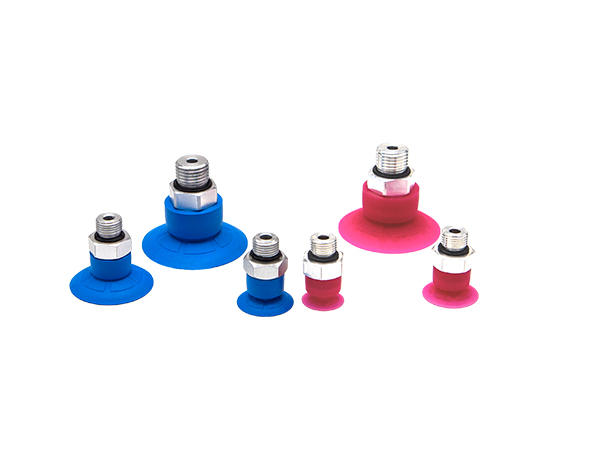

Flat suction cup (circular)
* Thin, large conical shaft vacuum cleaner with apron edge and slit blades.
* Extremely soft and flexible apron edge sealing.
* Structure and shaft reinforcement.
* Increase vacuum throughput with larger diameter.
* Made of FDA-compliant silicone and equipped with suction cup fixing pads.
* Built-in suction cup fixing seal (yellow).

Contact: +491727628103

Introduce
Design
Parameter

Thin, large conical shaft vacuum cleaner with apron edge and slit blades
Extremely soft and flexible apron edge sealing
Structure and shaft reinforcement
Increase vacuum throughput with larger diameter
Made of FDA-compliant silicone and equipped with suction cup fixing pads
Built-in suction cup fixing seal (yellow)

Product mix

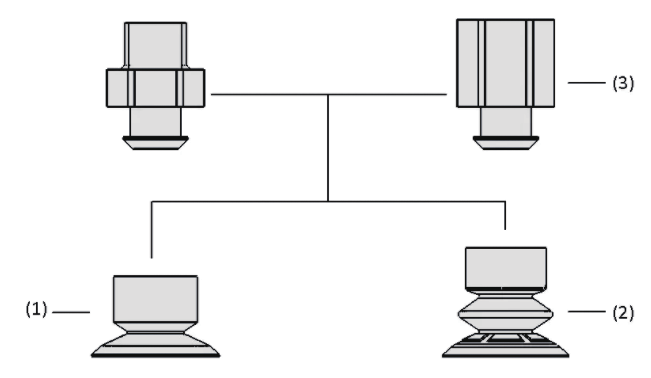

The suction cup and the thin and flexible sealing lip comprise a flat suction HFA (1) or a corrugated suction HFA 1.5 fold (2) and a connecting element (3).

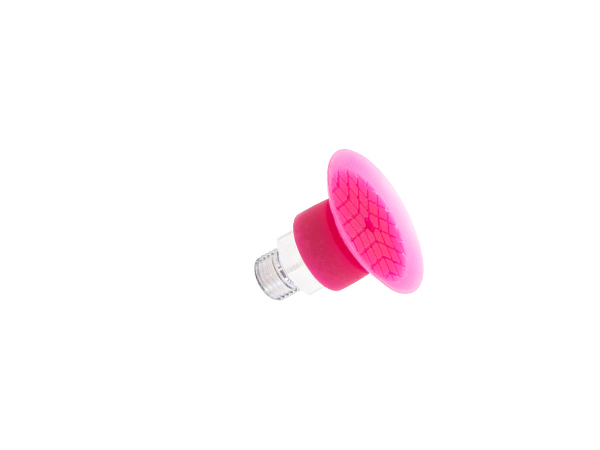

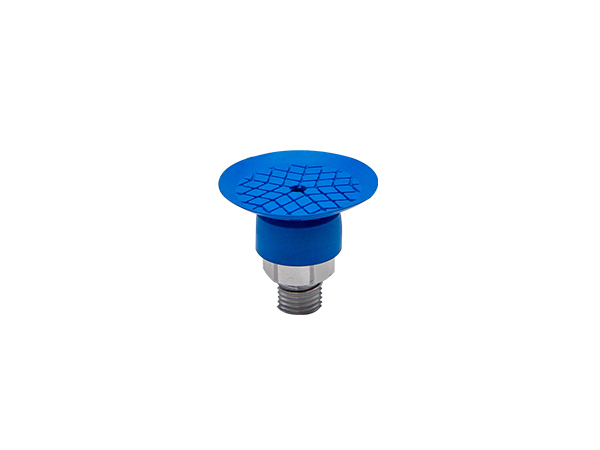

The inner support surface has a honeycomb structure and excellent vacuum distribution.
The suction area (+) ranges from 10 millimeters to 40 millimeters.

Product advantages
Balance the internal and external pressure of the vacuum gripper and release the product quickly.
Energy saving effect when handling non-breathable workpieces.
Any installation position, suitable for tight spaces.

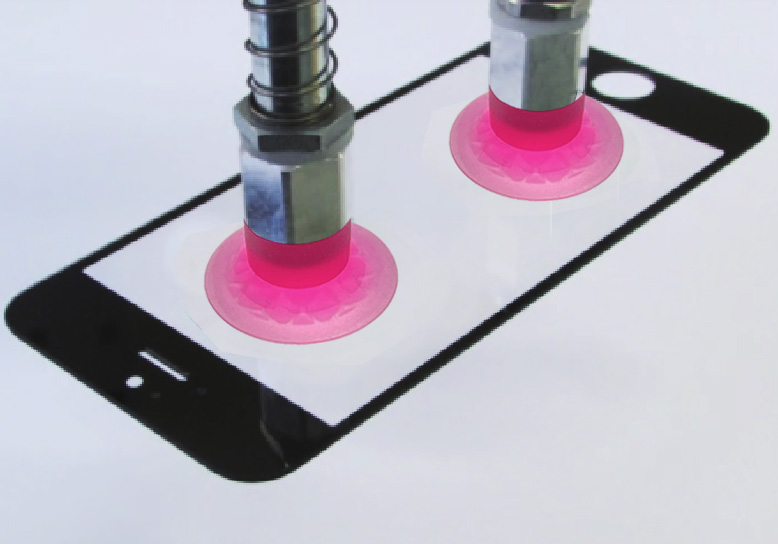

HFA suction cup handling mobile screen

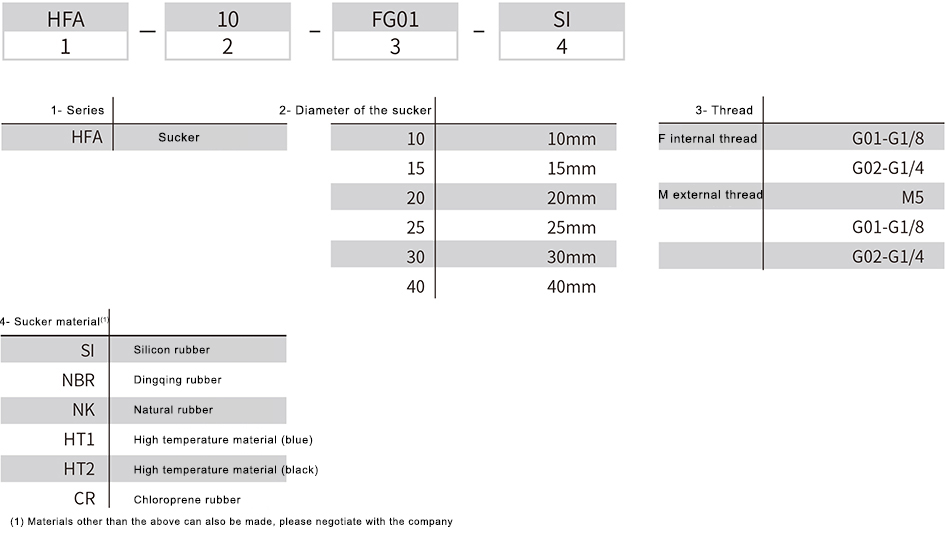

Ordering no

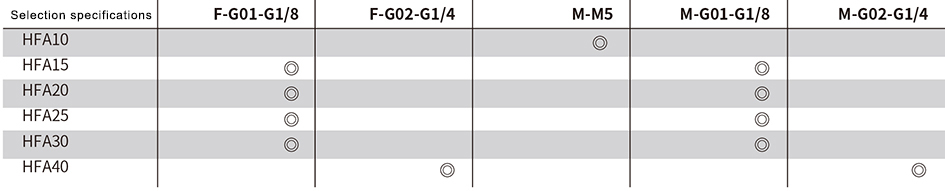

Selection specifications

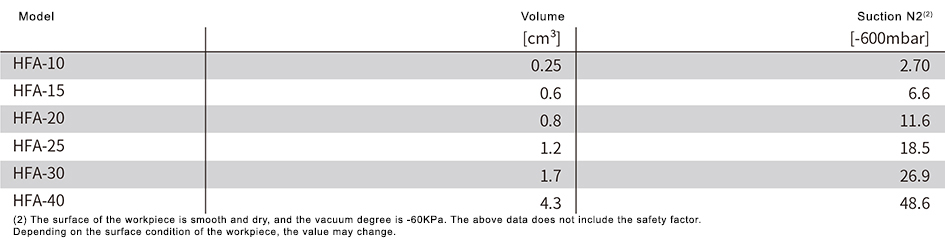

Technical data

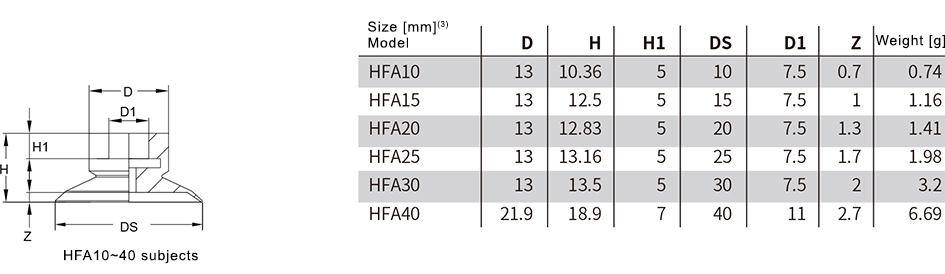

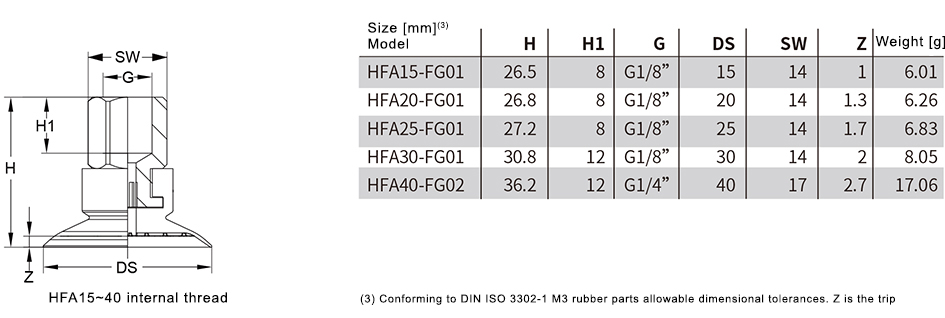

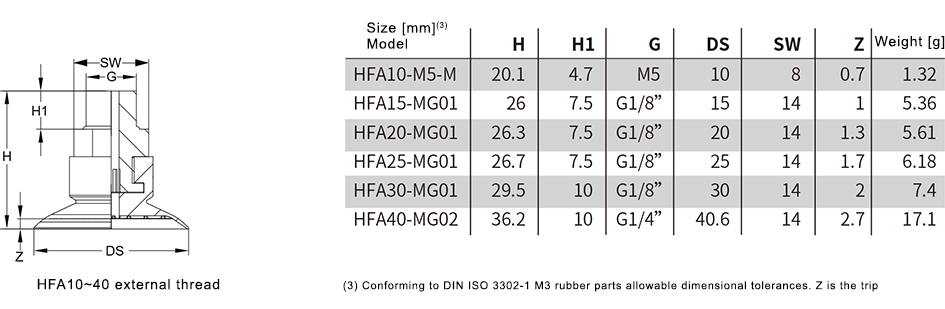

Design data
