Corrugated suction cup
* Used for quick handling of sheet metal.
* No dents or deformations occur when handling sheet metal
* The waveform has good compatibility with the workpiece.
* A handling system for punching production lines in the automotive industry.

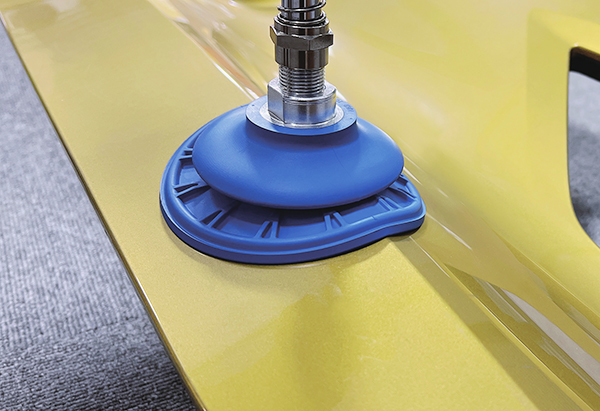

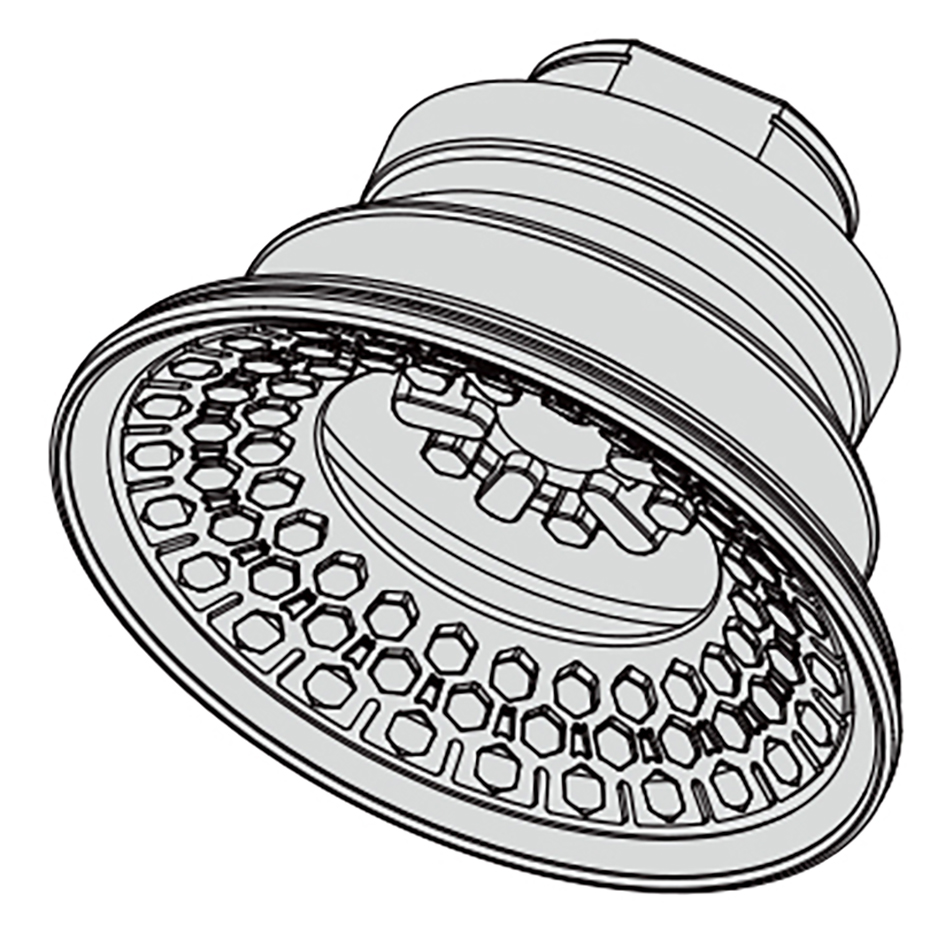

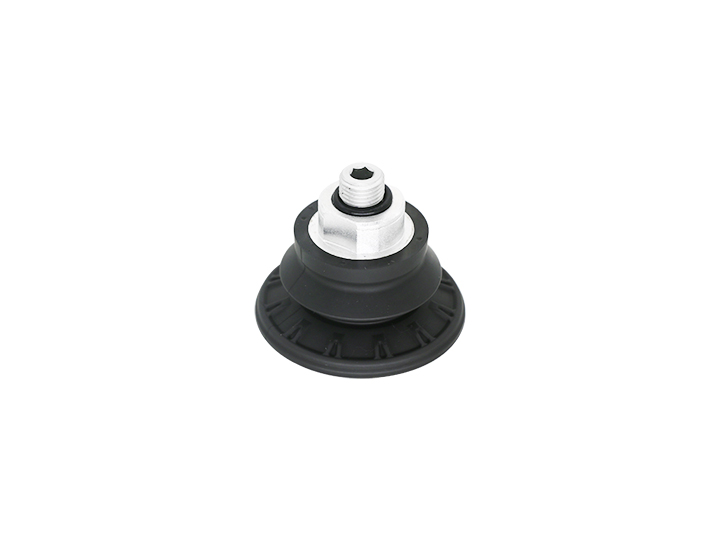

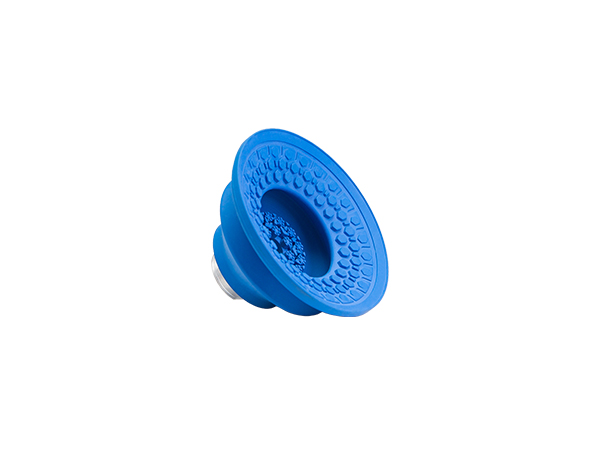

* The underside of the suction cup has a special groove structure to prevent the oily metal plate from slipping during transport and ensure precise positioning of the workpiece in the press.

Contact: +491727628103

Introduce
Design
Parameter

Used for quick handling of sheet metal.
No dents or deformations occur when handling sheet metal
The waveform has good compatibility with the workpiece.
A handling system for punching production lines in the automotive industry.
The underside of the suction cup has a special groove structure to prevent the oily metal plate from slipping during transport and ensure precise positioning of the workpiece in the press.

Product mix

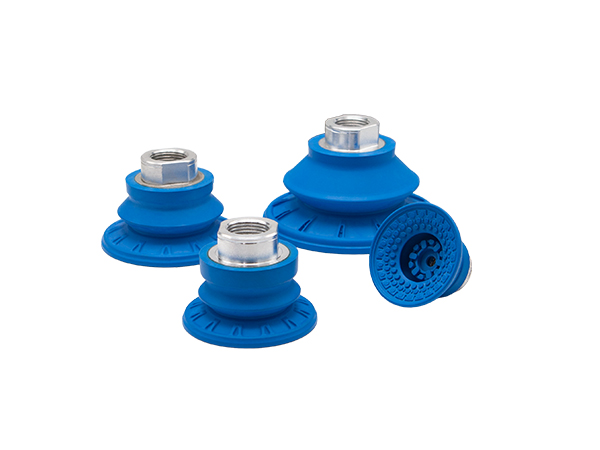

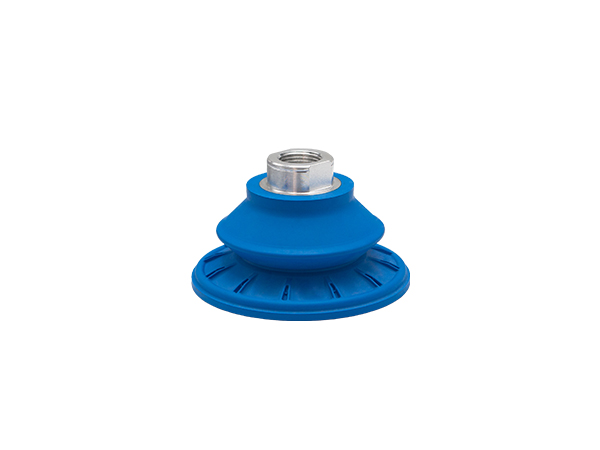

Durable and wear-resistant 1.5-fold corrugated suction cup made of nbr material, with special grooves and internal support structure.
The suction cup and the joint are fixed by vulcanization.
The suction cup has several connection forms to choose from.

Product advantages
Suitable for workpieces of different shapes and sizes.
Perfect fit with uneven workpiece surface, with good sealing and damping performance.
Has extremely strong horizontal and lateral grip.
It does not cause deformation of the workpiece and can also provide strong non-slip lateral force when handling sheets with oily surfaces.

HAB suction gripper handling of concave and convex workpiece surfaces

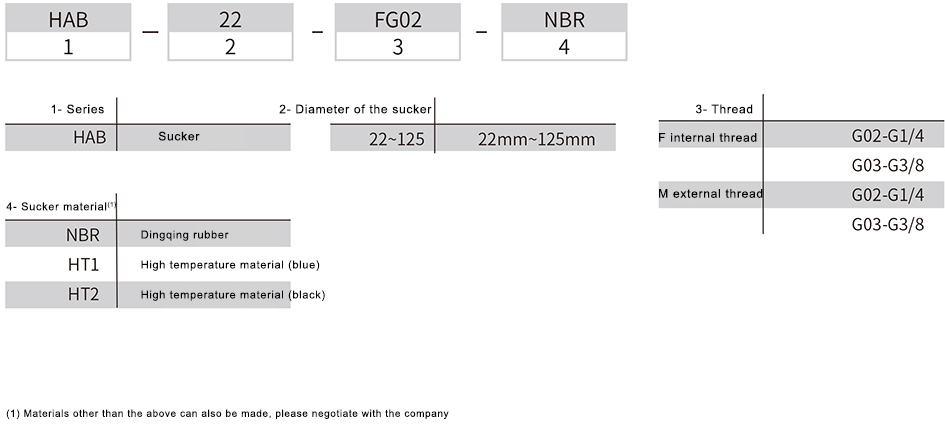

Ordering no

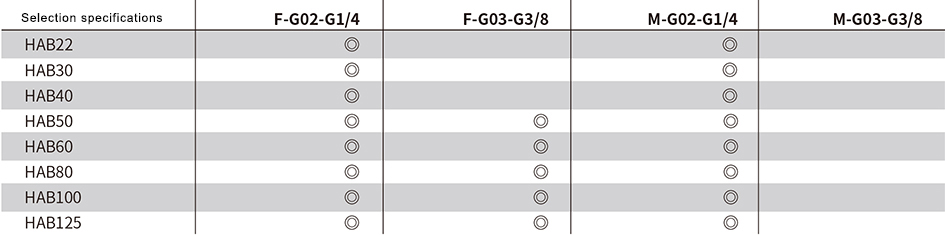

Selection specifications

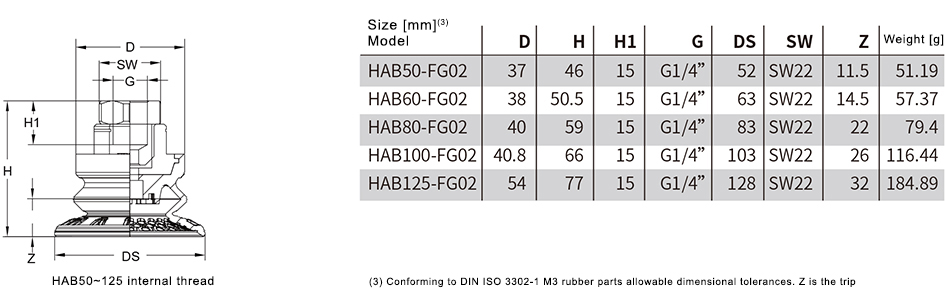

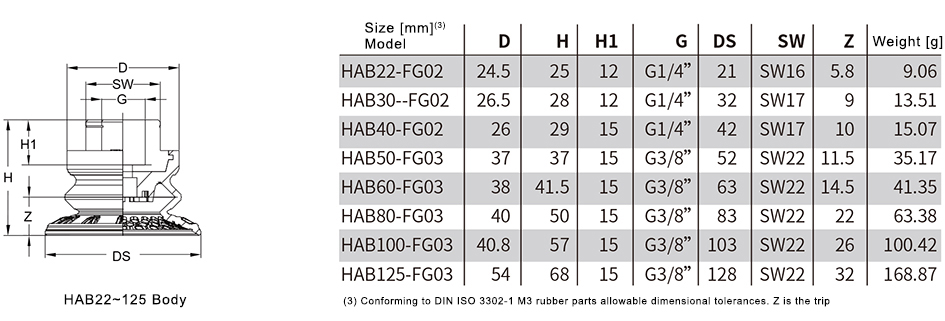

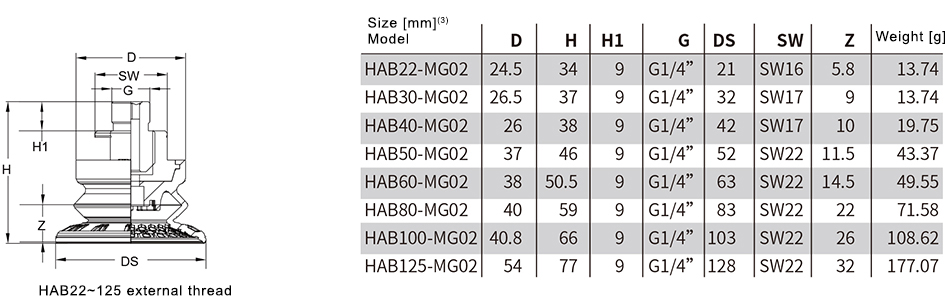

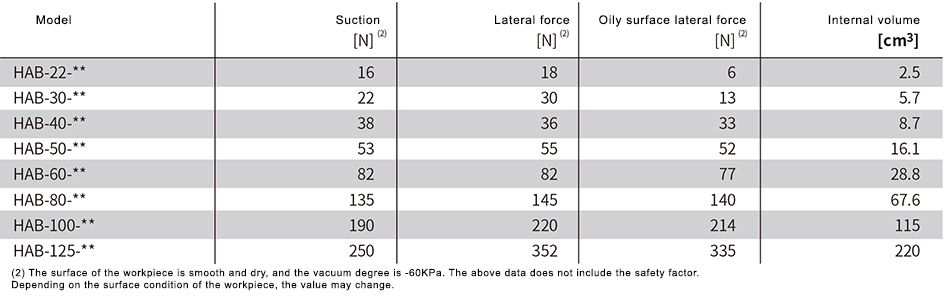

Technical data

Design data

Prev：Flat suction cup

Next：Elliptical suction cup
