Hanwa Vacuum Technology (Wuxi)

SECV-10
* A generator with high speed transport, strong air bubbles and fast release function, with extremely short automatic operation.
* The main body is made of plastic, with small size and light weight, especially suitable for highly dynamic systems.
* Direct assembly of suction cups and connectors.
* Equipped with a sound absorbing device, low noise.
* Alternative vacuum switch.
* Modular installation form for vacuum generators in various areas. Active blowing can achieve extremely short cycle times, suitable for areas such as sheet metal handling, automotive industry, packaging technology and robotics.

Contact: +491727628103

Introduce
Design
Parameter

Product mix

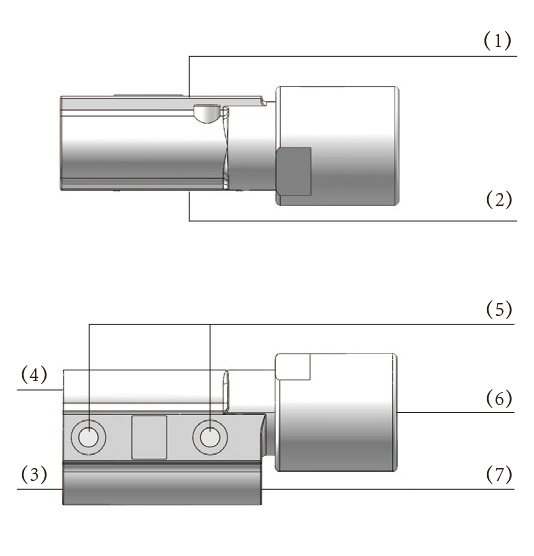

(1) Main body: made of plastic, small in size and light in weight.
(2) Silencer: made of anodized aluminium oxide.
(3) Joint: A compressed air joint used for blowing air.
(4) Connection: A compressed air connection used for extraction.
(5) Connection connector: used to connect with devices.
(6) Connection connection: vacuum connection.
(7) Mounting screw: M4x2.

Product advantages

Suitable for various occasions that require air bubbles and have a short working cycle, such as sheet metal working, automotive industry, packaging machines and industrial robots.

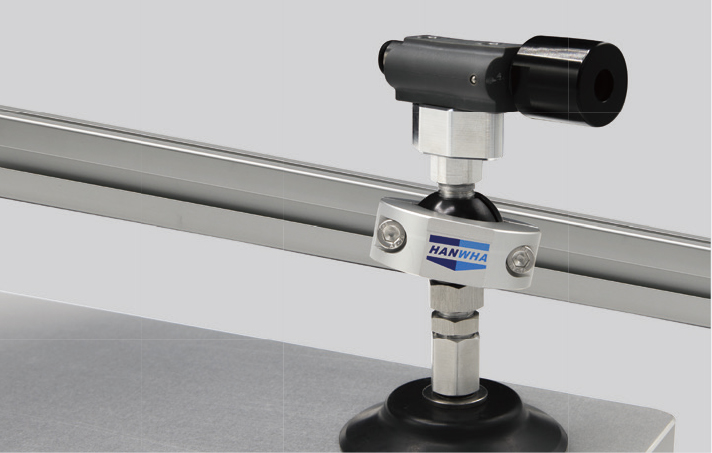

Example of vacuum generator SECV directly connected to ball clamp vacuum

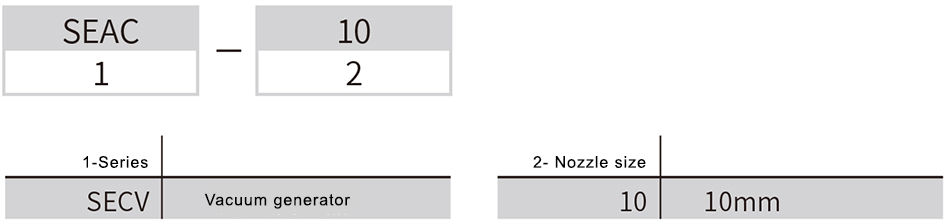

Ordering no

Technical data

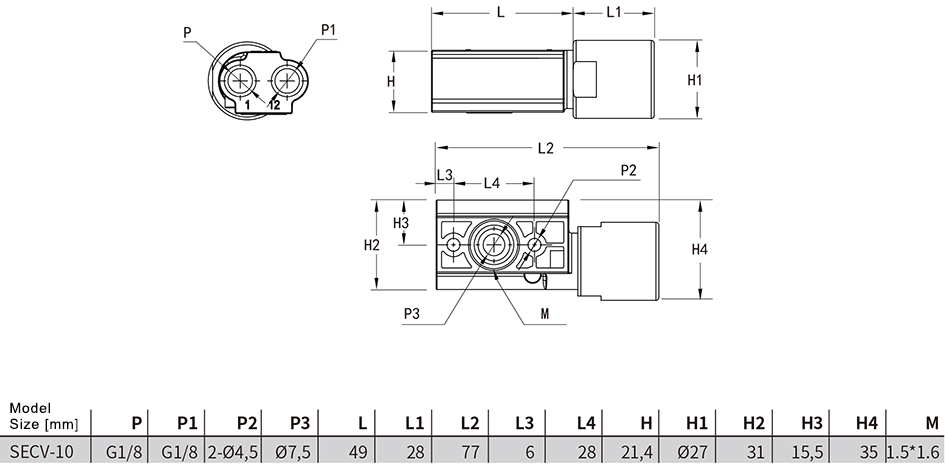

Design data
